IBBM-50E Four-Station Injection Blow Molding Machine
A fully electric horizontal four-station machine optimized for PET and PETG skincare, perfume, serum and color-cosmetic packaging.
IBBM-50E
A fully electric horizontal four-station machine optimized for PET and PETG skincare, perfume, serum and color-cosmetic packaging.
- Horizontal 4-station layout
- Fully electric operation
- High efficiency
- Oil-free production
- Quiet operation
IBBM-50E technical overview
Reference specifications are shown below. Final specifications depend on the quoted configuration, resin, mold and bottle project.
- Product range
- 50–200 mL
- Injection volume
- 314 cm³
- Injection weight
- 219 g HDPE
- Injection clamping force
- 650 kN × 2 sections
- Maximum product size
- H200 × Ø100 mm
- Machine dimensions (L × W × H)
- 6 × 1.65 × 2.35 m
- Machine weight (without mold)
- 12 t
- The 219 g injection weight uses HDPE as its reference resin. Published application scope remains PET/PETG; confirm the exact resin and bottle project with LIANXIN.
Process and platform notes
- The horizontal four-station layout coordinates injection, blowing, cooling and ejection processes.
- The fully electric architecture is designed for efficient, clean and quiet operation.
- The platform supports complex hollow-container projects that benefit from a dedicated four-station workflow.
IBBM-50E full specifications
Manufacturer specifications, updated .
| Parameter | Specification |
|---|---|
| Screw diameter | 50 mm |
| Screw L/D ratio | 25 |
| Theoretical shot volume | 314 cm³ |
| Injection weight (HDPE) | 219 g HDPE is the reference resin for this weight; this does not expand the published PET/PETG application scope. |
| Maximum injection pressure | 100 MPa |
| Maximum screw stroke | 160 mm |
| Maximum screw speed | 220 rpm |
| Barrel heating power | 17.5 kW |
| Heating zones | 4 |
| Injection clamping force (two sections) | 650 kN per section |
| Mold opening stroke | 120 mm |
| Rotary table lifting height | 65 mm |
| Mold core mounting plate length | 514 mm |
| Maximum platen size (L × W) | 625 × 430 mm |
| Minimum mold thickness | 254 ± 0.05 mm |
| Mold heating power | 8 kW |
| Stripping stroke | 200 mm |
| Product volume | 0.05–0.2 L |
| Maximum product height | ≤ 200 mm |
| Maximum product diameter | ≤ 100 mm |
| Dry cycle time | 5 s Unloaded machine cycle; this is not the bottle-production cycle or guaranteed output. |
| Minimum compressed-air supply pressure | 2.5 MPa |
| Compressed-air consumption | ≥ 0.8 m³/min |
| Cooling water flow | 3.5 m³/h |
| Total rated power (without mold heating) | 95 kW |
| Machine dimensions (L × W × H) | 6000 × 1650 × 2350 mm |
| Machine weight (without mold) | 12 t |

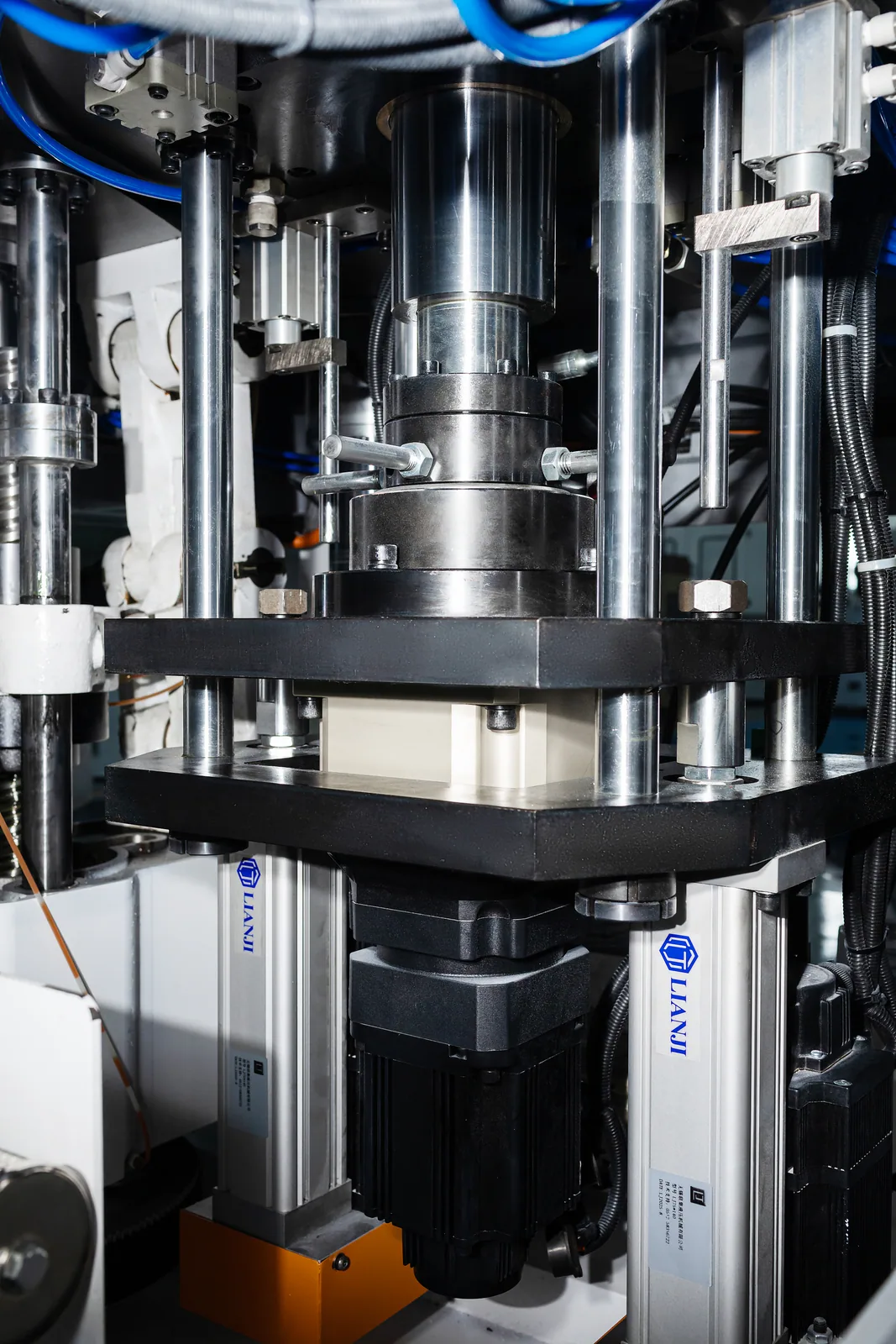

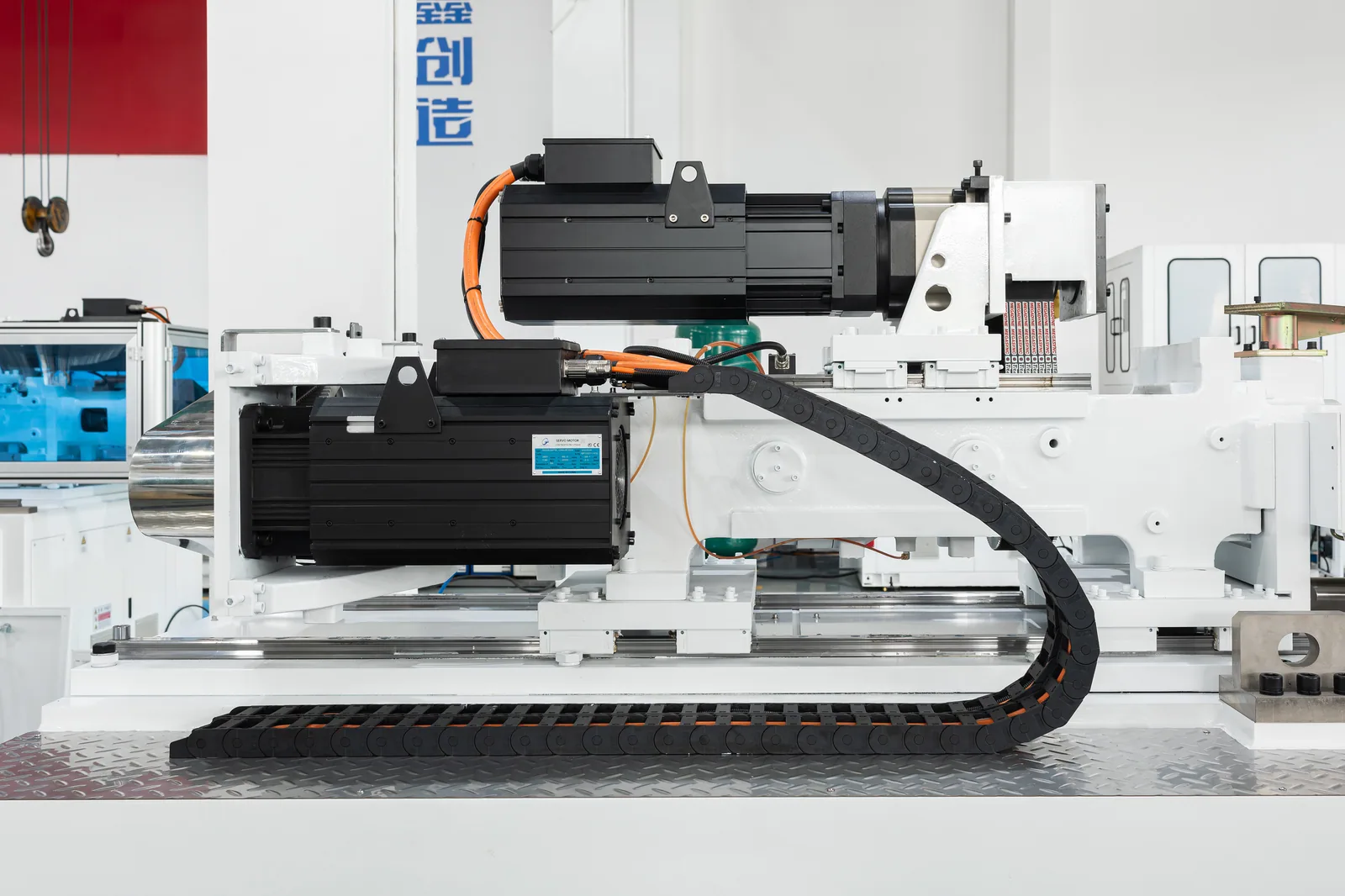

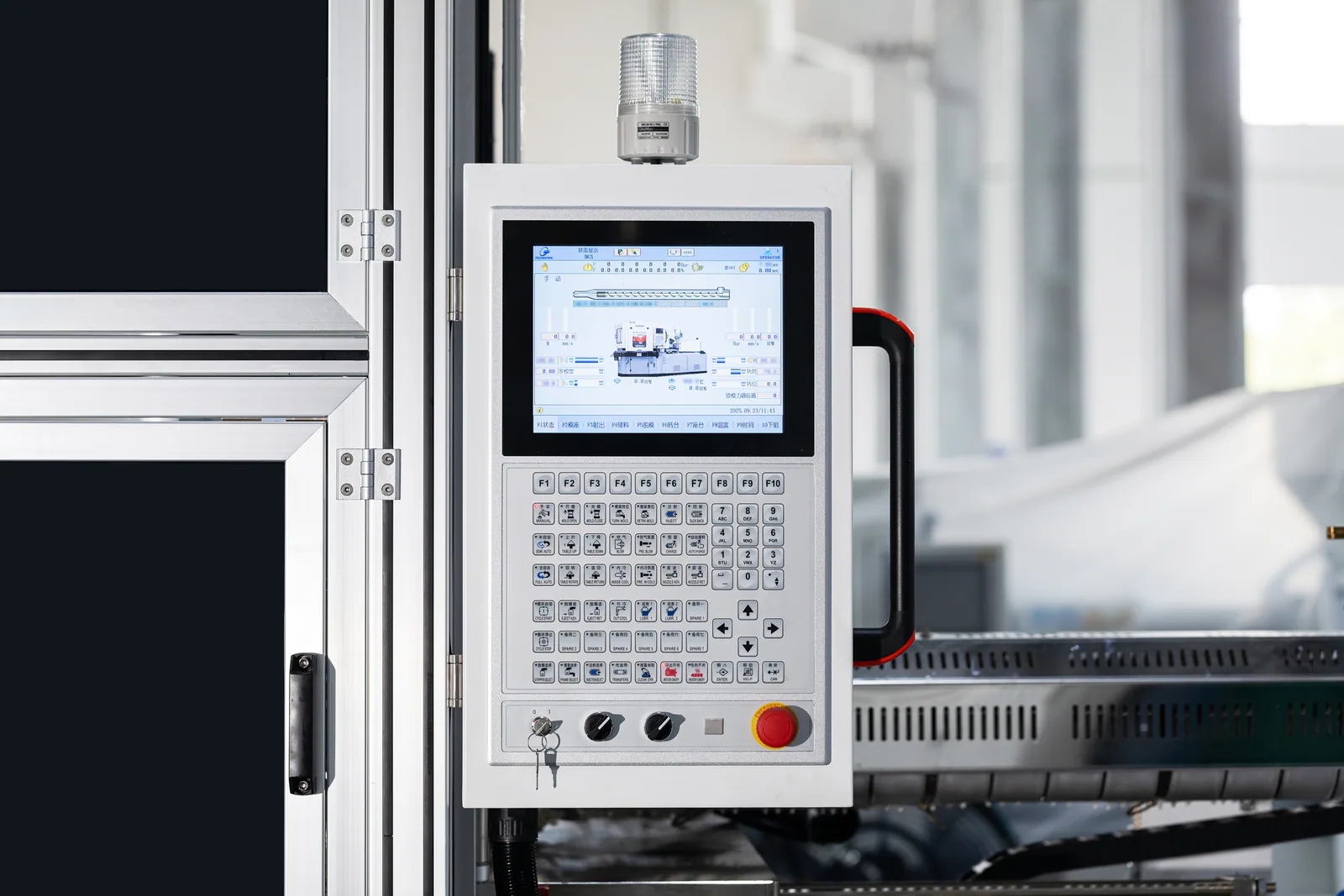

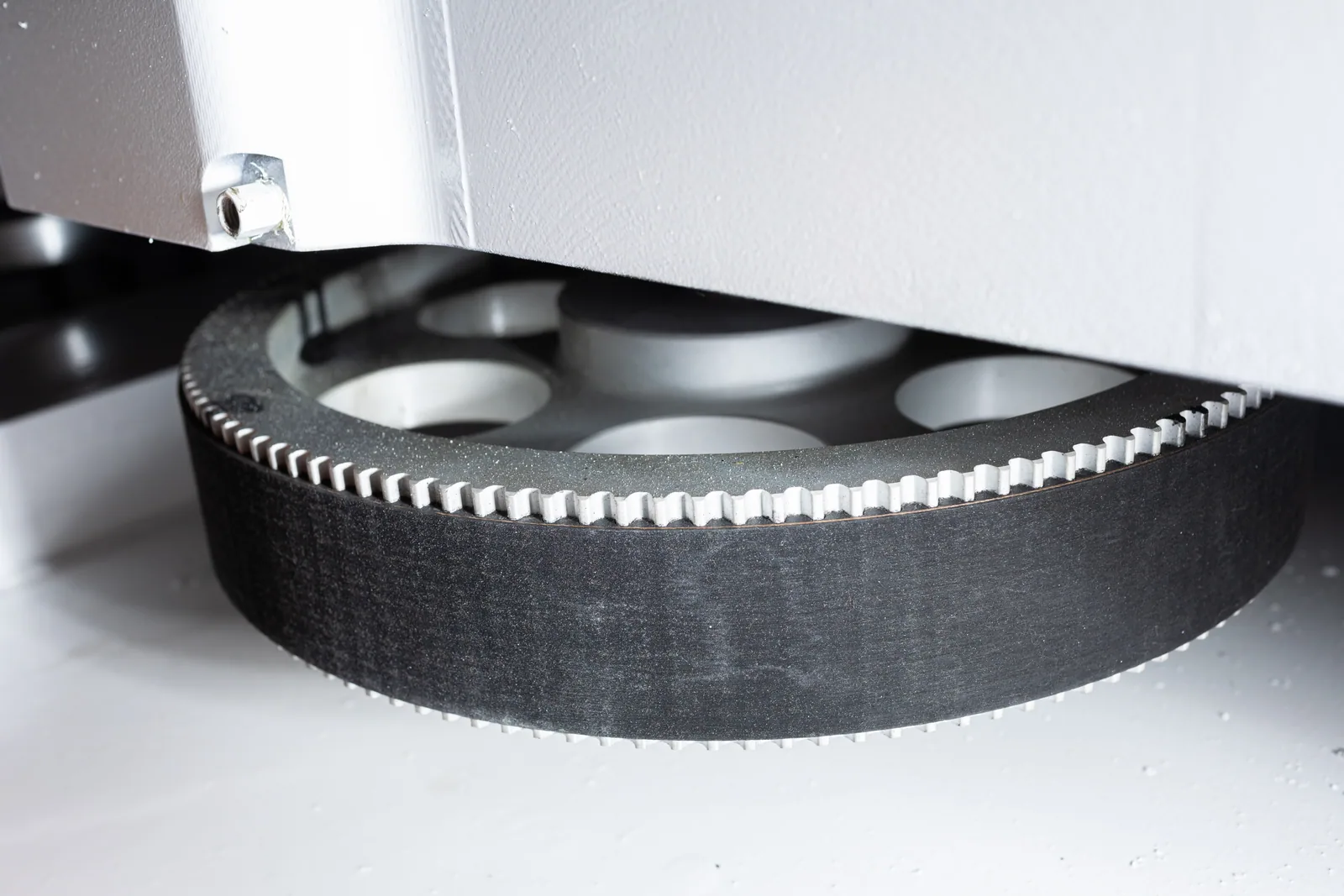

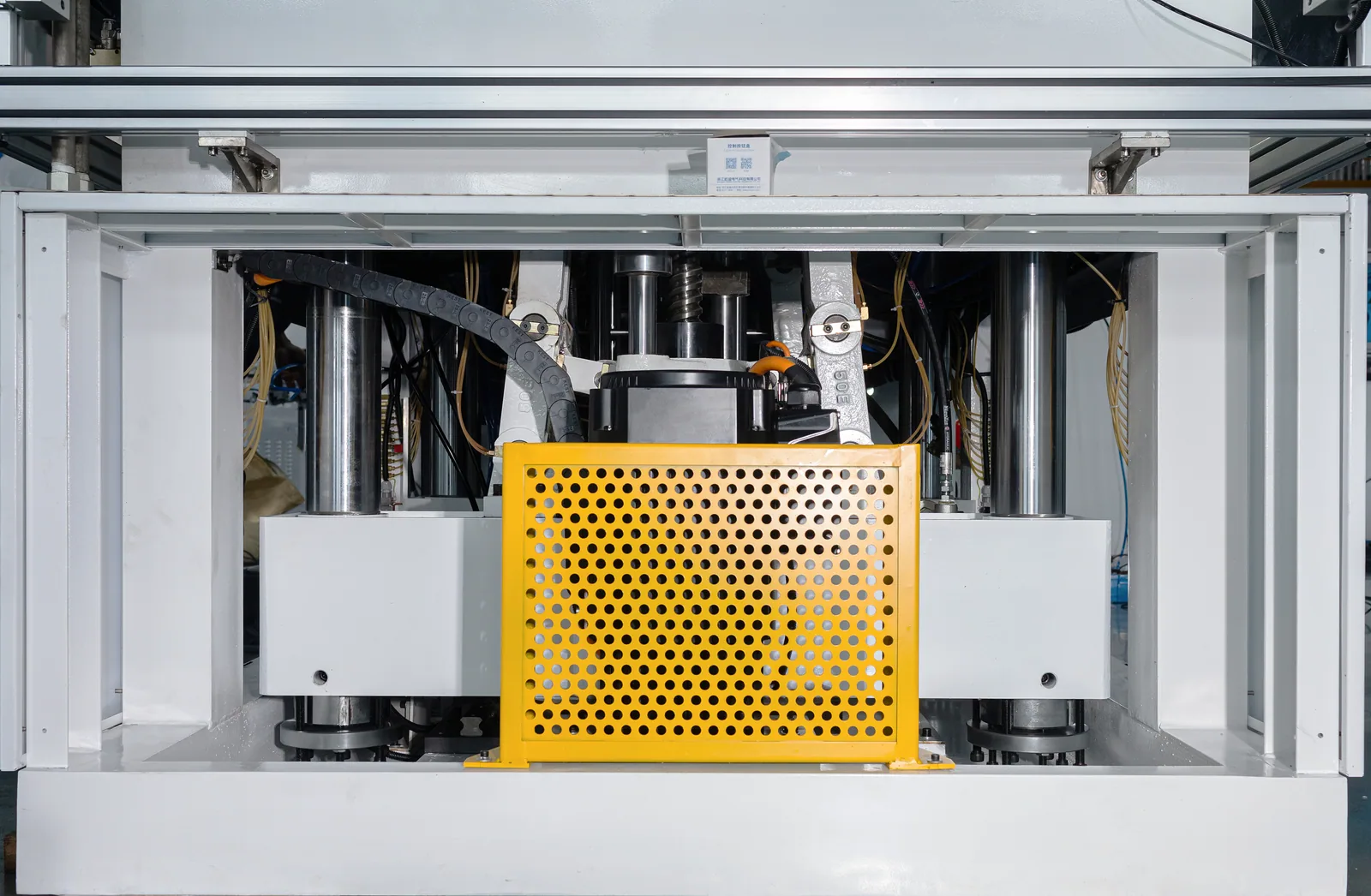

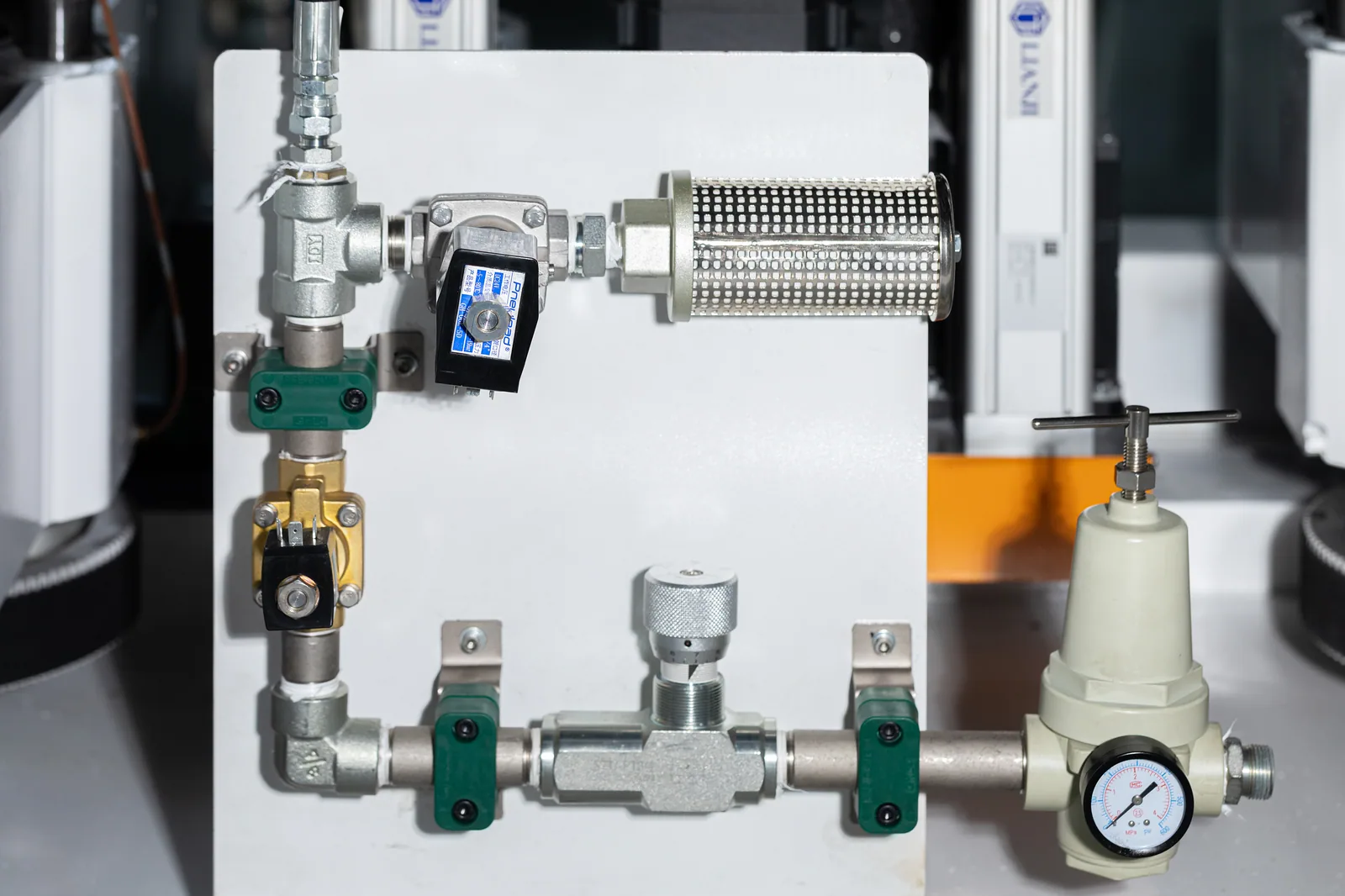

A closer look at IBBM-50E
Request an IBBM-50E project quotation
Share your bottle drawing, picture or target volume. We’ll review machine selection, mold coordination and your project requirements.
