To choose an injection blow molding machine, define the bottle before comparing machine models: resin, brimful volume, neck finish, maximum body dimensions, target output and quality checks. Those inputs determine the mold, core rods, plasticizing demand and production architecture; the useful comparison starts there, not with machine tonnage alone.
1. Start With the Bottle Drawing
A supplier cannot size a reliable project from nominal bottle volume alone. Send a dimensioned drawing or physical sample that identifies the neck finish, overflow volume, overall height, maximum diameter or width, shoulder profile and base geometry. If the closure already exists, include its drawing and the required sealing land.
The neck is especially important in injection blow molding because it is formed during the injection stage rather than trimmed after blowing. The U.S. FDA container-closure guidance treats the container and closure as one packaging system and calls for appropriate functionality and acceptance criteria. Provide the closure drawing, sealing land, torque window and fit tests even when the project is outside pharmaceutical packaging.
2. Confirm the Resin and Product Contact Requirements
Identify the exact commercial resin grade, not only a family such as HDPE or PP. Melt flow, density, additives, color masterbatch and regulatory status can change process settings and bottle performance. LIANXIN source material lists PE, HDPE, LDPE, PP and PS among the materials used across its injection blow molding projects, but compatibility still has to be confirmed for the selected grade, bottle and mold.
For food, pharmaceutical or cosmetic packaging, bring the product-contact and market requirements into the project before tooling. A machine builder can support process and equipment decisions, but the brand owner remains responsible for validating the resin, closure and finished container for the intended contents.
3. Define Output as Good Bottles per Hour
State the required saleable output, planned shifts and annual production days. “Fast cycle” is not a complete target: cavity count, cooling time, downstream leak testing, changeovers and reject rate all affect the number of good bottles that reach packing.
- Hourly target: accepted bottles after inspection, not theoretical shots.
- Operating pattern: hours per shift, shifts per day and planned maintenance windows.
- Product mix: one dedicated bottle or frequent mold and color changes.
- Growth allowance: realistic forecast demand rather than an arbitrary oversize factor.
Ask the supplier to document the assumptions behind any output estimate. A transparent calculation is more useful than a single headline number.
4. Match Architecture to the Production Environment

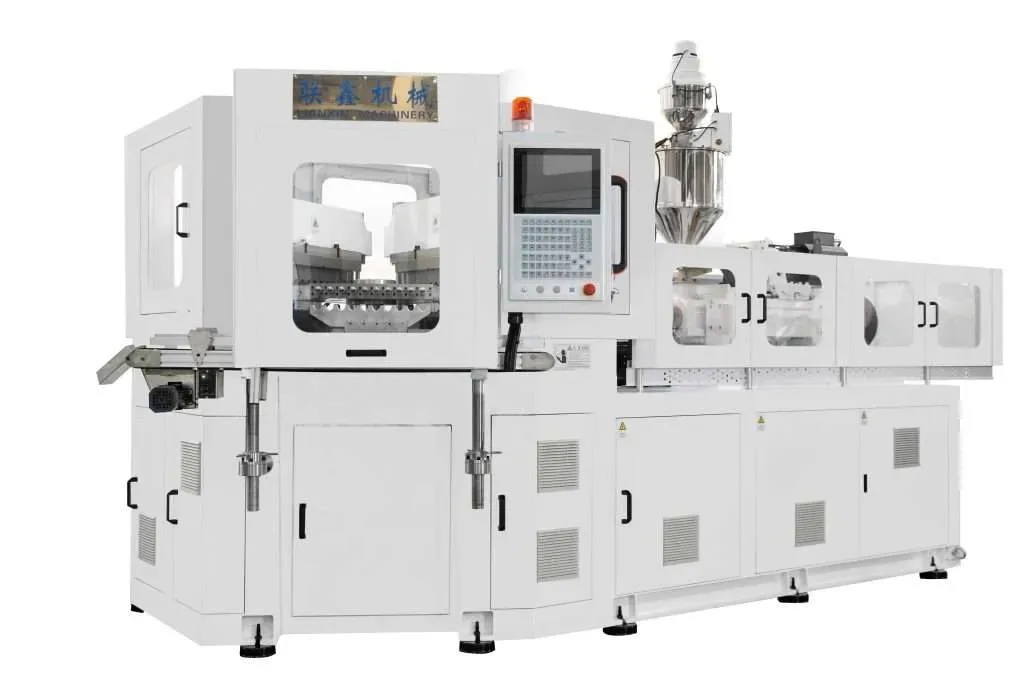

Drive architecture affects oil management, noise, motion control, energy use and maintenance skills. LIANXIN offers electro-hydraulic hybrid IBM-H machines, full-electric IBM-E machines and a fully electric horizontal four-station IBBM platform. The right choice depends on the project rather than a universal ranking.
The European Commission guidance on electric motors and variable-speed drives requires efficiency information at different speed and torque points. Those data can help optimize a motor system, but they do not by themselves prove whole-machine or whole-line energy savings.
| Decision area | Questions to ask |
|---|---|
| Production room | Is the line in a general workshop, controlled area or qualified cleanroom? |
| Utilities | What electrical supply, cooling water and compressed-air capacity are available? |
| Maintenance | Which servo, hydraulic and control-system skills are available on site? |
| Changeovers | How often will molds, colors or resins change? |
| Automation | Will the line connect to leak testing, vision inspection, conveying or packing? |
For a deeper architecture comparison, see full-electric versus hybrid injection blow molding machines.
5. Write the Acceptance Criteria Before Ordering
Agree how the sample bottle and production line will be judged. Typical project criteria include bottle weight, brimful capacity, critical body and neck dimensions, leakage, appearance, wall distribution, standing stability and closure fit. Pharmaceutical, food and other regulated projects may require additional tests defined by the product owner.
Separate machine acceptance from package validation. A factory acceptance test can show that the equipment produces bottles to an agreed trial specification; it does not replace compatibility, stability, migration, transport or shelf-life studies for the filled package.
For machinery-safety scope, OSHA's plastics-industry page lists ANSI/SPI B151.21 as a national-consensus safety standard for IBM and ISBM machinery and explicitly notes that the listed consensus standards are not OSHA regulations. Confirm the applicable law and contractually required standard edition for the installation country.
6. Compare the Complete Scope, Not the Machine Alone
Clarify what is included: molds, core rods, resin dryer or loader, chiller, air compressor, leak tester, conveyor, spare parts, installation, training and remote support. Also confirm who owns each interface. A low machine price can become expensive if utilities, molds or downstream equipment are discovered late.
LIANXIN asks buyers to provide a bottle drawing or sample, material, capacity, neck size and required output. Use that list as the minimum brief, then add quality standards, factory conditions and downstream interfaces. You can send the project brief for a machine-and-mold review.
Frequently Asked Questions
What information is needed for an injection blow molding machine quotation?
Provide the bottle drawing or sample, resin grade, volume, neck dimensions, target output, cavity preference, product-contact use, power supply and required auxiliary equipment.
Should I choose the smallest machine that can make the bottle?
Not automatically. The machine must support the mold, plasticizing demand, cavity count, cycle target and quality window with practical operating margin.
How should suppliers compare production output?
Ask for good bottles per hour at stated cycle, cavity count, resin, bottle weight and inspection assumptions. Compare like with like.
Do I need the mold design before choosing the machine?
You need at least a reviewed bottle and preliminary mold concept. Final machine and mold decisions should be coordinated because core rods, cavities, clamping and utilities interact.
Can one machine run several bottle sizes?
Often yes, within the machine and mold envelope, but each bottle-resin combination needs engineering review. Changeover time and annual volume determine whether flexibility is economical.
