IBM 135H Hybrid-Servo Injection Blow Molding Machine
The largest published IBM-H injection platform, covering products from 15 mL to 1.5 L with a 1,153 cm³ injection volume.
IBM 135H
The largest published IBM-H injection platform, covering products from 15 mL to 1.5 L with a 1,153 cm³ injection volume.
- Electro-hydraulic hybrid servo architecture
- Cleanroom-ready configuration
- Servo-driven indexing
- Dual-cylinder clamping
- CNC-controlled melt back pressure
IBM 135H technical overview
Reference specifications are shown below. Final specifications depend on the quoted configuration, resin, mold and bottle project.
- Product range
- 15 mL–1.5 L
- Injection volume
- 1,153 cm³
- Injection weight
- 1000/1210 g HDPE
- Clamping force (injection / blowing)
- 1,500 / 247 kN
- Maximum product size
- H285 × Ø120 mm
- Machine dimensions (L × W × H)
- 6.5 × 2.7 × 2.4 m
- Machine weight
- 18 t
Process and platform notes
- The hybrid servo architecture is designed to improve energy efficiency. Actual energy use depends on the selected machine, configuration, resin, mold and operating conditions.
- Servo-driven indexing delivers fast, quiet and vibration-free rotation.
- A bottom-mounted clamping cylinder saves space, supports smooth mold rotation and helps prevent oil-leak contamination.
- Dual-cylinder clamping provides quick, stable cycles and balanced force across the mold.
- CNC-controlled melt back pressure supports convenient, reliable and consistent plasticizing.
IBM 135H full specifications
Manufacturer specifications, updated .
| Parameter | Specification |
|---|---|
| Screw diameter | 70 mm |
| Screw L/D ratio | 22 |
| Maximum injection volume | 1153 cm³ |
| Injection weight (HDPE) | 1000/1210 g |
| Maximum injection pressure | 158 MPa |
| Maximum screw stroke | 272 mm |
| Screw speed | 175 rpm |
| Barrel heating power | 19 kW |
| Heating zones | 5 |
| Injection clamping force | 1500 kN |
| Blow clamping force | 247 kN |
| Mold opening stroke | 140 mm |
| Rotary table lifting height | 75 mm |
| Maximum platen size (L × W) | 1140 × 500 mm |
| Minimum mold thickness (±0.05 mm) | 280 mm |
| Mold heating power | 8 kW |
| Ejection stroke | 300 mm |
| Main servo motor power | 75 kW |
| Hydraulic system pressure | 14 MPa |
| Product volume | 0.015–1.5 L |
| Maximum product height | ≤ 285 mm |
| Maximum product diameter | ≤ 120 mm |
| Dry cycle time | 5 s Unloaded machine cycle; this is not the bottle-production cycle or guaranteed output. |
| Minimum compressed-air supply pressure | 1.2 MPa |
| Compressed-air consumption | ≥ 0.8 m³/min |
| Cooling water flow | 3.5 m³/h |
| Machine dimensions (L × W × H) | 6.5 × 2.7 × 2.4 m |
| Machine net weight | 18 t |
| Total rated power (electric pre-plasticization configuration) | 164 kW The manufacturer specifies the electric pre-plasticization configuration; confirm the quoted machine configuration. |

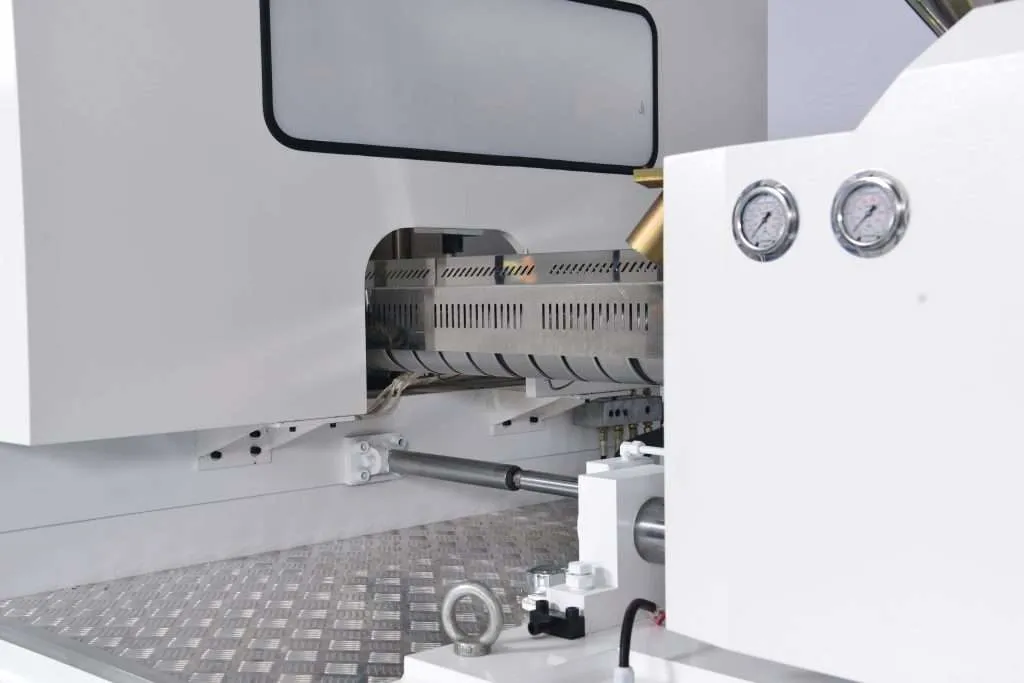

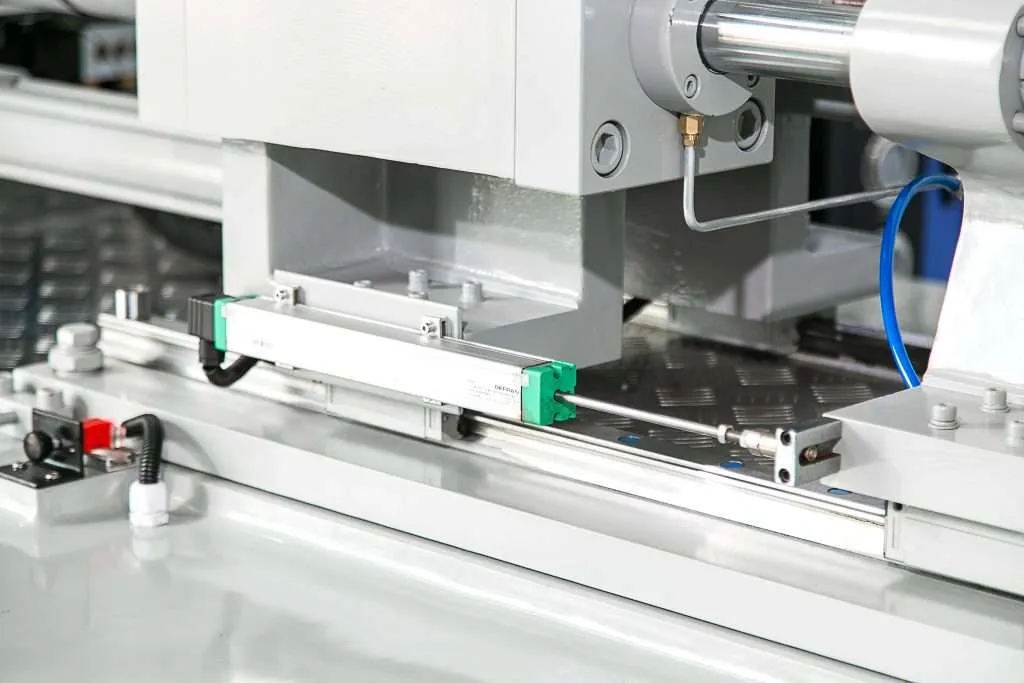

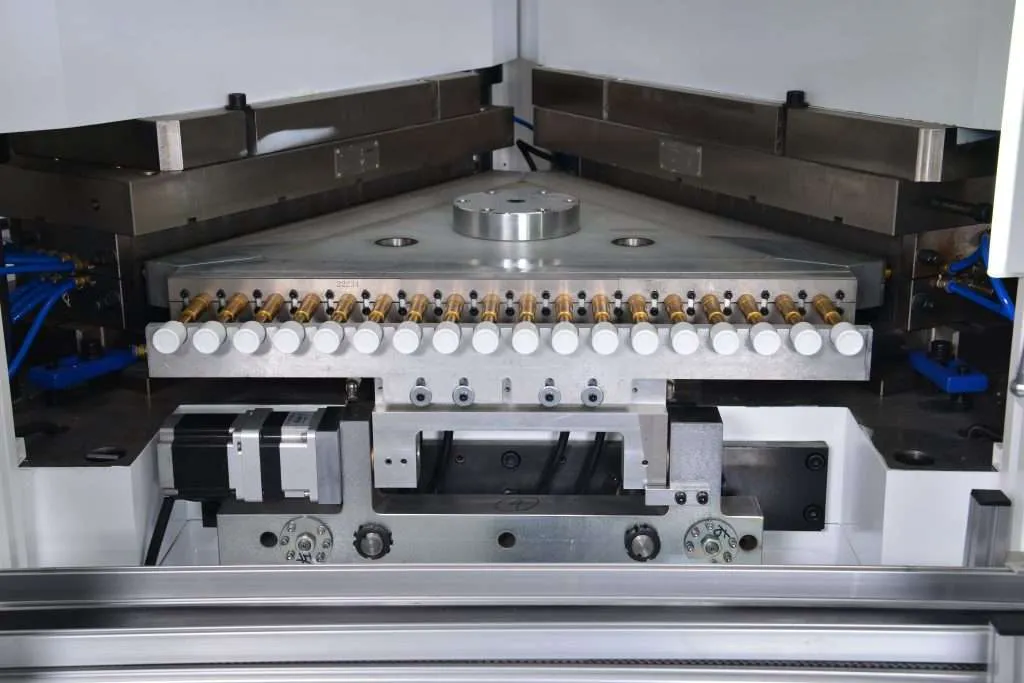

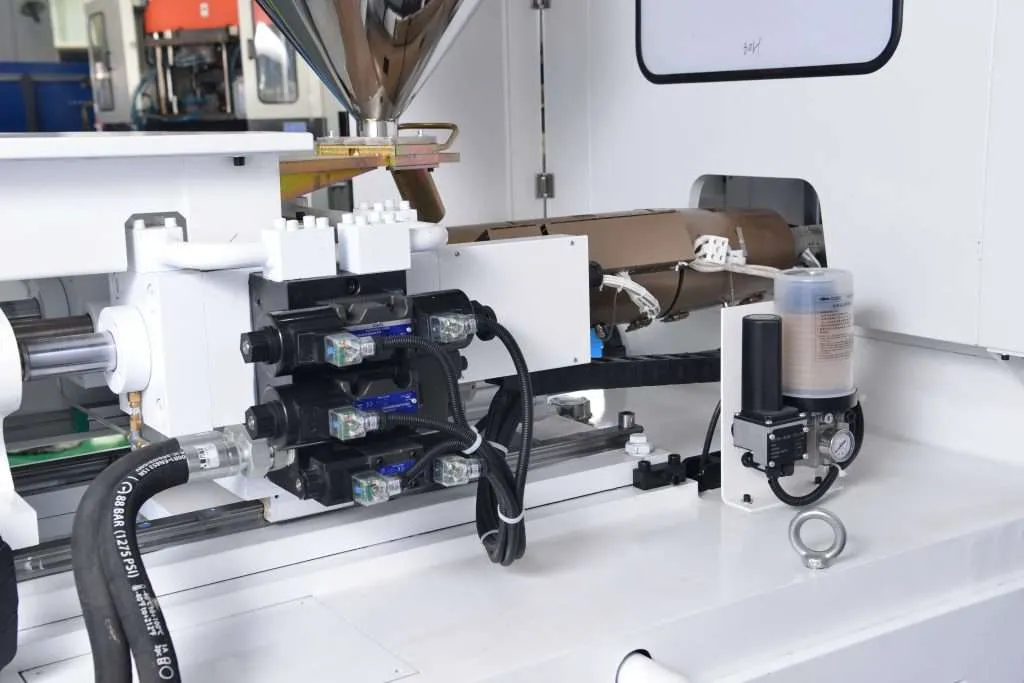

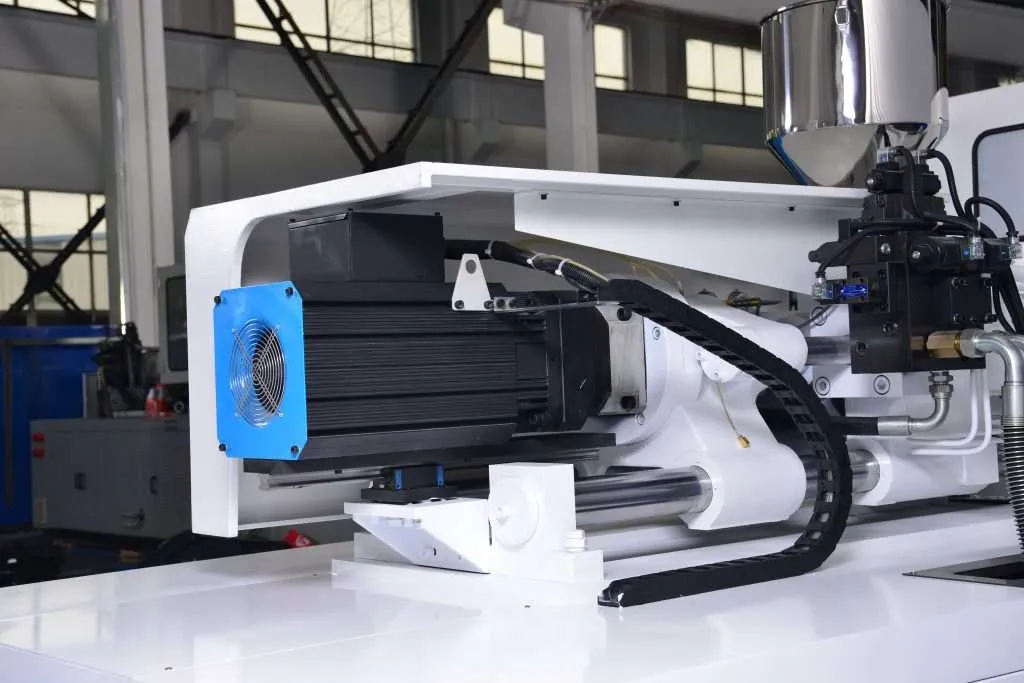

A closer look at IBM 135H
