IBM 30H Hybrid-Servo Injection Blow Molding Machine
An electro-hydraulic hybrid servo machine for efficient, clean and stable injection blow molding production.
IBM 30H
An electro-hydraulic hybrid servo machine for efficient, clean and stable injection blow molding production.
- Electro-hydraulic hybrid servo architecture
- Cleanroom-ready configuration
- Servo-driven indexing
- Dual-cylinder clamping
- CNC-controlled melt back pressure
IBM 30H technical overview
Reference specifications are shown below. Final specifications depend on the quoted configuration, resin, mold and bottle project.
- Product range
- 5–800 mL
- Injection volume
- 200 cm³
- Injection weight
- 140 g HDPE
- Clamping force (injection / blowing)
- 400 / 53 kN
- Maximum product size
- H210 × Ø100 mm
- Machine dimensions (L × W × H)
- 3.85 × 1.85 × 2 m
- Machine weight
- 4 t
Process and platform notes
- The hybrid servo architecture is designed to improve energy efficiency. Actual energy use depends on the selected machine, configuration, resin, mold and operating conditions.
- Servo-driven indexing delivers fast, quiet and vibration-free rotation.
- A bottom-mounted clamping cylinder saves space, supports smooth mold rotation and helps prevent oil-leak contamination.
- Dual-cylinder clamping provides quick, stable cycles and balanced force across the mold.
- CNC-controlled melt back pressure supports convenient, reliable and consistent plasticizing.
IBM 30H full specifications
Manufacturer specifications, updated .
| Parameter | Specification |
|---|---|
| Screw diameter | 40 mm |
| Screw L/D ratio | 21 |
| Maximum injection volume | 200 cm³ |
| Injection weight (HDPE) | 140 g |
| Maximum injection pressure | 175 MPa |
| Maximum screw stroke | 165 mm |
| Screw speed | 10–260 rpm |
| Barrel heating power | 8.5 kW |
| Heating zones | 3 |
| Injection clamping force | 400 kN |
| Blow clamping force | 53 kN |
| Mold opening stroke | 120 mm |
| Rotary table lifting height | 60 mm |
| Maximum platen size (L × W) | 420 × 300 mm |
| Minimum mold thickness (±0.05 mm) | 180 mm |
| Mold heating power | 1.2–2.5 kW |
| Ejection stroke | 230 mm |
| Main servo motor power | 18.5 kW |
| Hydraulic system pressure | 14 MPa |
| Product volume | 0.005–0.8 L |
| Maximum product height | ≤ 210 mm |
| Maximum product diameter | ≤ 100 mm |
| Dry cycle time | 3 s Unloaded machine cycle; this is not the bottle-production cycle or guaranteed output. |
| Minimum compressed-air supply pressure | 1.2 MPa |
| Compressed-air consumption | ≥ 0.8 m³/min |
| Cooling water flow | 3 m³/h |
| Machine dimensions (L × W × H) | 3.85 × 1.85 × 2 m |
| Machine net weight | 4 t |
| Total rated power (electric pre-plasticization configuration) | 43 kW The manufacturer specifies the electric pre-plasticization configuration; confirm the quoted machine configuration. |

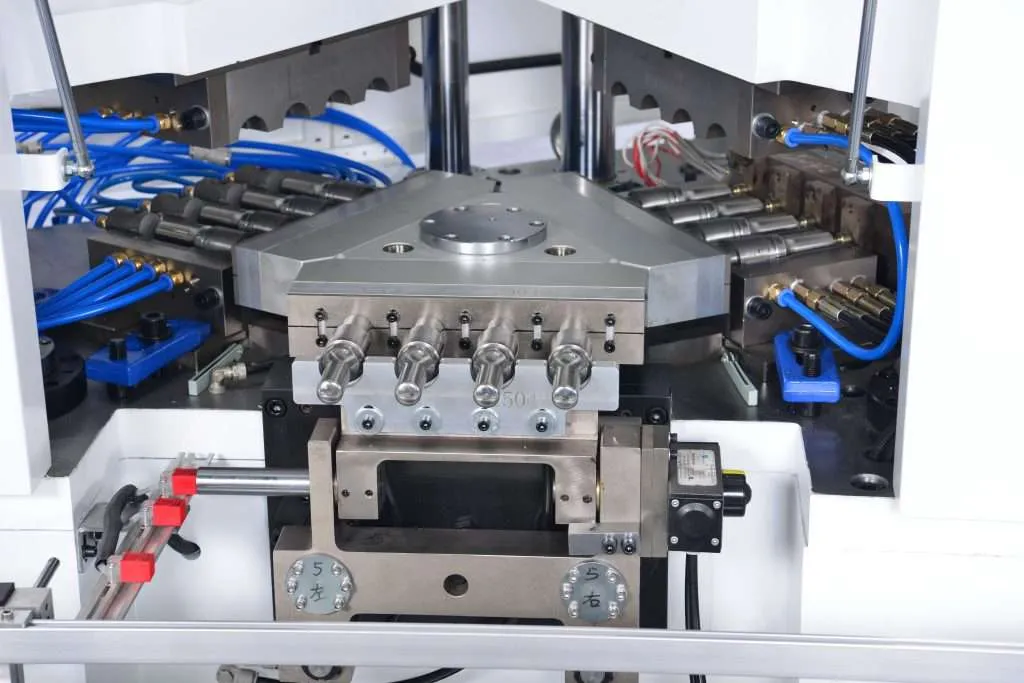

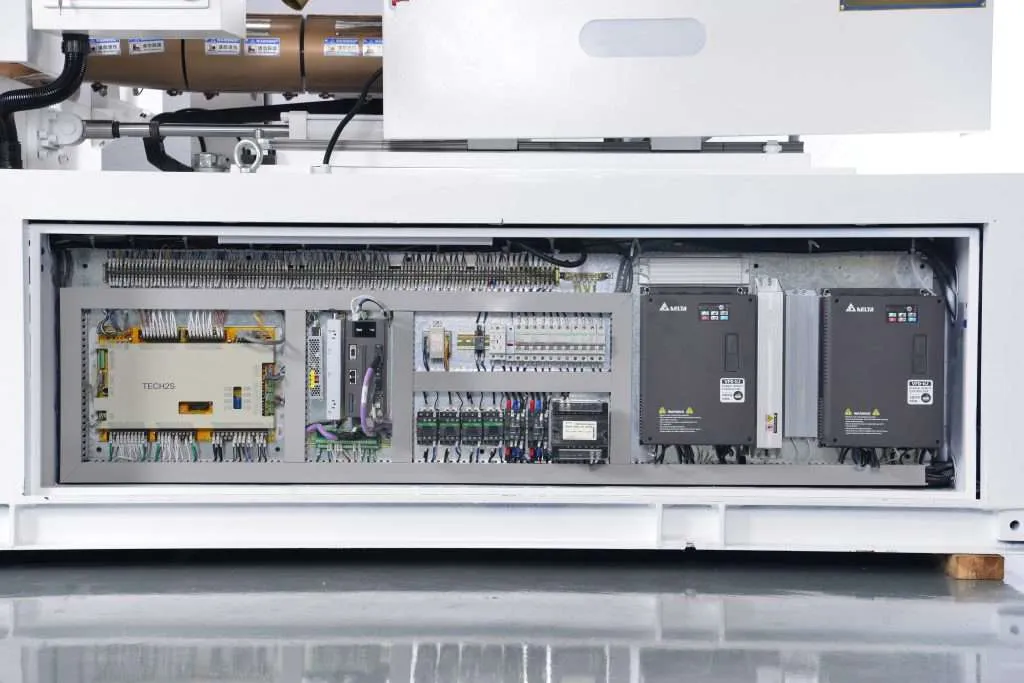

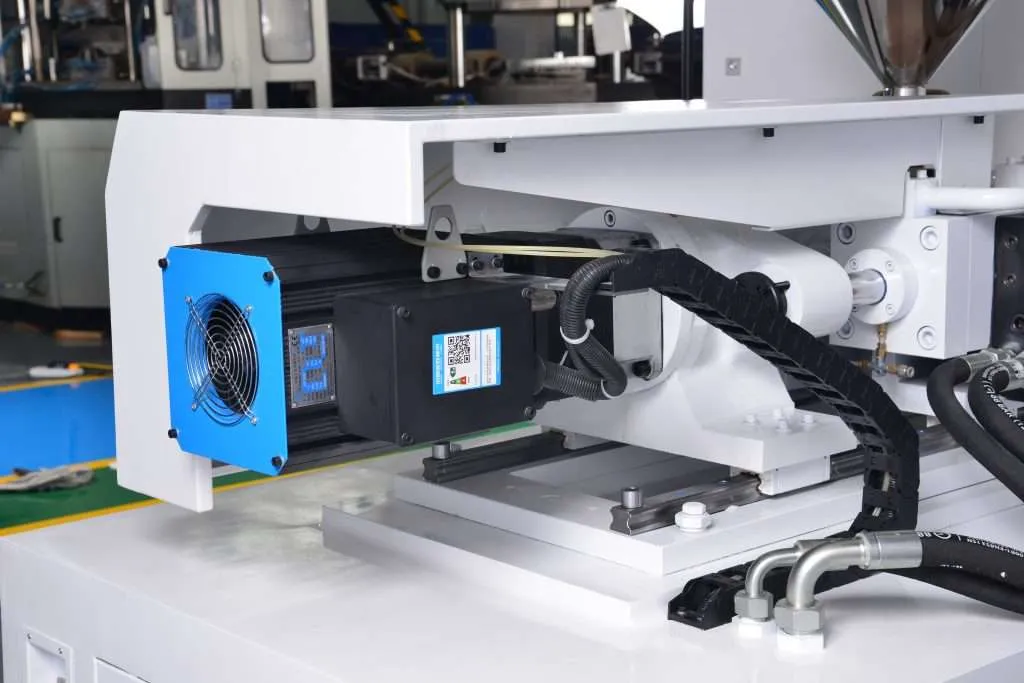

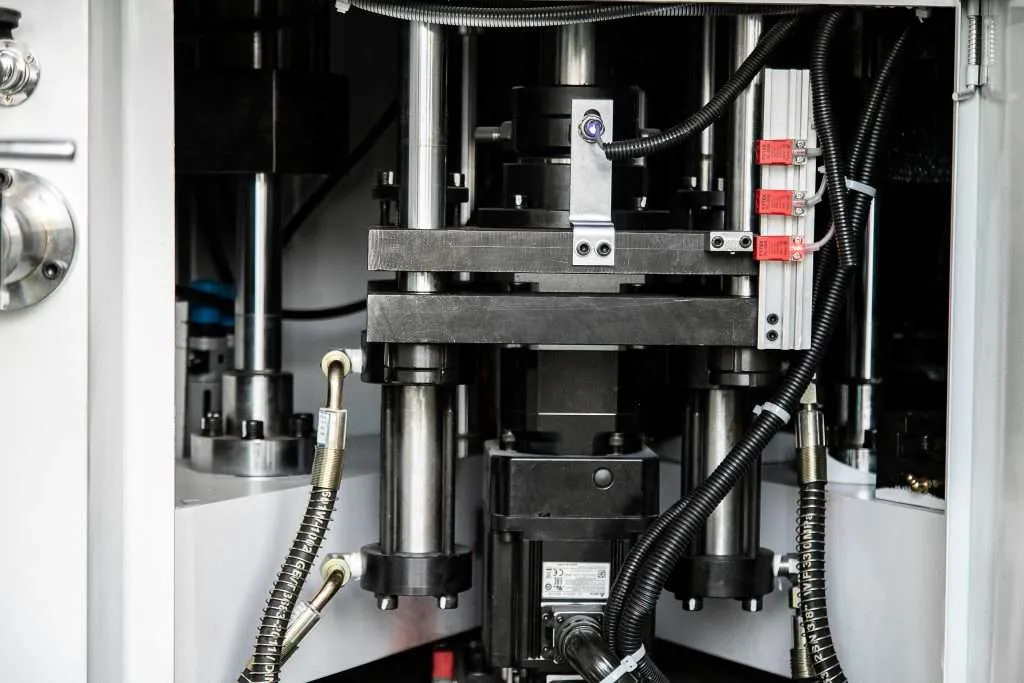

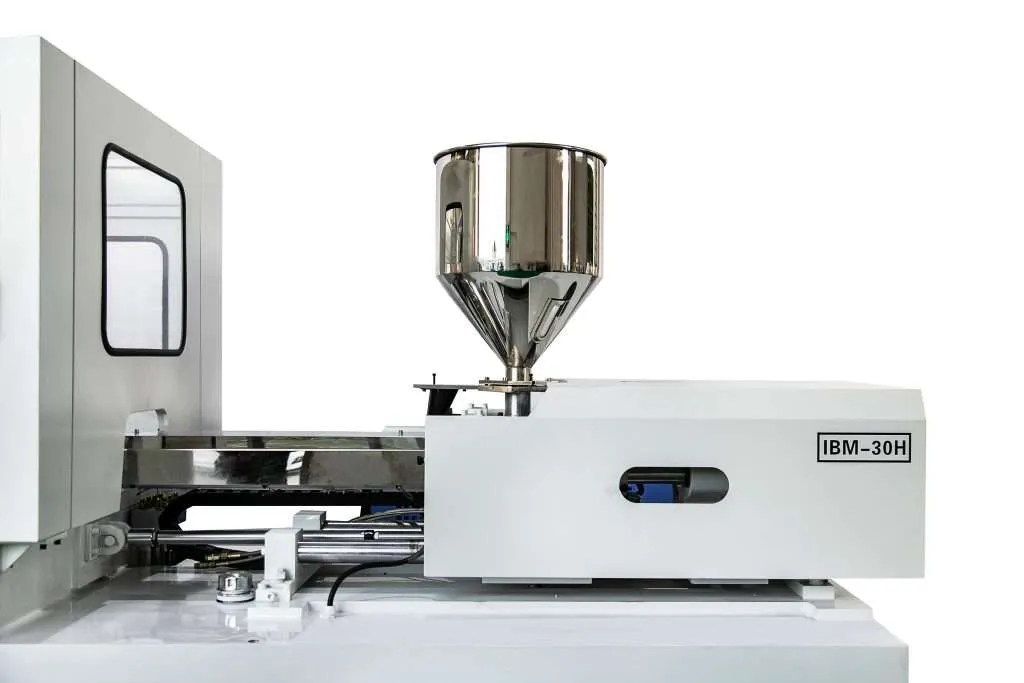

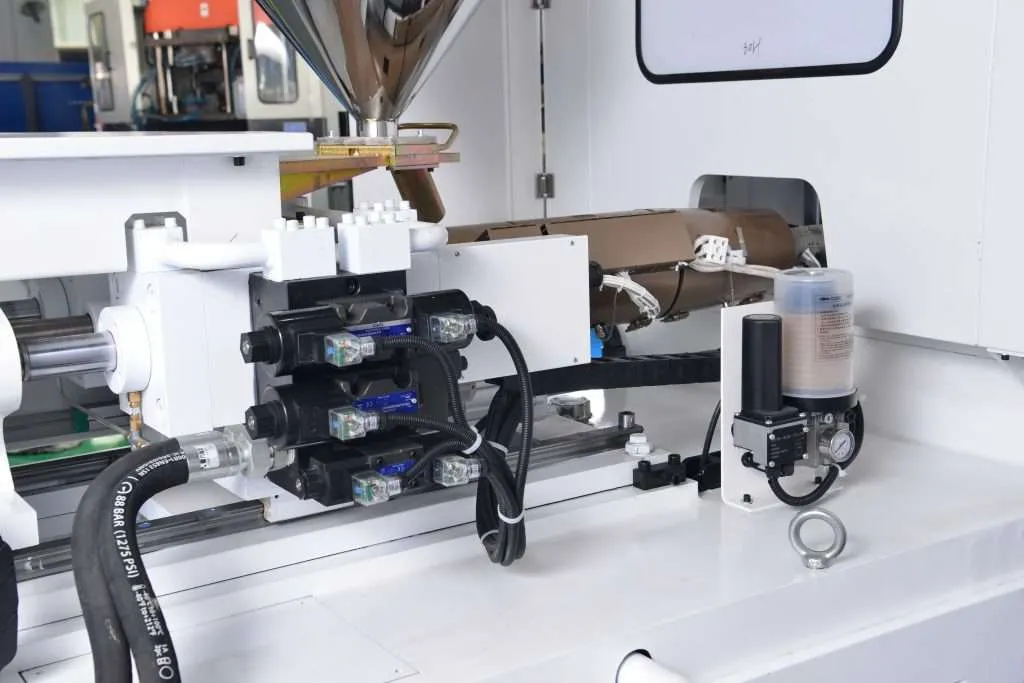

A closer look at IBM 30H
Request an IBM 30H project quotation
Share your bottle drawing, picture or target volume. We’ll review machine selection, mold coordination and your project requirements.
Email our teamlx@zjglx.comPhone / WhatsApp+86-13338673537Questions about IBM 30H
Published material scope, model selection, support and coordinated mold review.
