IBM 30E Full-Electric Injection Blow Molding Machine
A full-electric servo machine using ETHERCAT control for precise, quiet and energy-efficient production.
IBM 30E
A full-electric servo machine using ETHERCAT control for precise, quiet and energy-efficient production.
- Full-electric servo architecture
- ETHERCAT-based control system
- High-speed, quiet operation
- Servo-driven critical motions
- Precision ball-screw mold drive
IBM 30E technical overview
Reference specifications are shown below. Final specifications depend on the quoted configuration, resin, mold and bottle project.
- Product range
- 15 mL–1 L
- Injection volume
- 201 cm³
- Injection weight
- 151 g HDPE
- Clamping force (injection / blowing)
- 400 / 80 kN
- Maximum product size
- H200 × Ø90 mm
- Machine dimensions (L × W × H)
- 3.05 × 1.3 × 2.15 m
- Machine weight
- 4.5 t
Process and platform notes
- An ETHERCAT-based electrical operating system with Techmation controller provides fast response and precise control. Actual energy use depends on the selected machine, configuration, resin, mold and operating conditions.
- Critical motions including rotation, ejection and flipping use servo motors for stable, quiet, high-speed performance.
- A double-beam, four-tie-bar toggle clamping structure distributes clamping force reliably.
- Mold opening and closing use a high-precision Japanese servo ball-screw drive for rapid, low-impact movement.
- CNC back-pressure regulation and a high-resolution motion-control encoder support consistent plastication.
IBM 30E full specifications
Manufacturer specifications, updated .
| Parameter | Specification |
|---|---|
| Screw diameter | 40 mm |
| Screw L/D ratio | 21 |
| Maximum injection volume | 201 cm³ |
| Injection weight (HDPE) | 151 g |
| Maximum injection pressure | 1000 bar |
| Maximum screw stroke | 160 mm |
| Screw speed | 250 rpm |
| Barrel heating power | 6 kW |
| Heating zones | 3 |
| Injection clamping force | 400 kN |
| Blow clamping force | 80 kN |
| Mold opening stroke | 120 mm |
| Rotary table lifting height | 60 mm |
| Maximum platen size (L × W) | 420 × 300 mm |
| Standard mold thickness (±0.05 mm) | 180 mm |
| Mold heating power | 2 kW |
| Ejection stroke | 230 mm |
| Clamping shaft servo motor power | 4.5 kW |
| Charging shaft servo motor power | 11 kW |
| Injection shaft servo motor power | 12 kW |
| Rotation servo motor power | 2 kW |
| Product volume | 0.015–1 L |
| Maximum product height | ≤ 200 mm |
| Maximum product diameter | ≤ 90 mm |
| Dry cycle time | 2.5 s Unloaded machine cycle; this is not the bottle-production cycle or guaranteed output. |
| Minimum compressed-air supply pressure | 1.2 MPa |
| Compressed-air consumption | ≥ 0.8 m³/min |
| Machine dimensions (L × W × H) | 3.05 × 1.3 × 2.15 m |
| Machine net weight | 4.5 t |
| Total rated power (electric pre-plasticization configuration) | 65 kW The manufacturer specifies the electric pre-plasticization configuration; confirm the quoted machine configuration. |

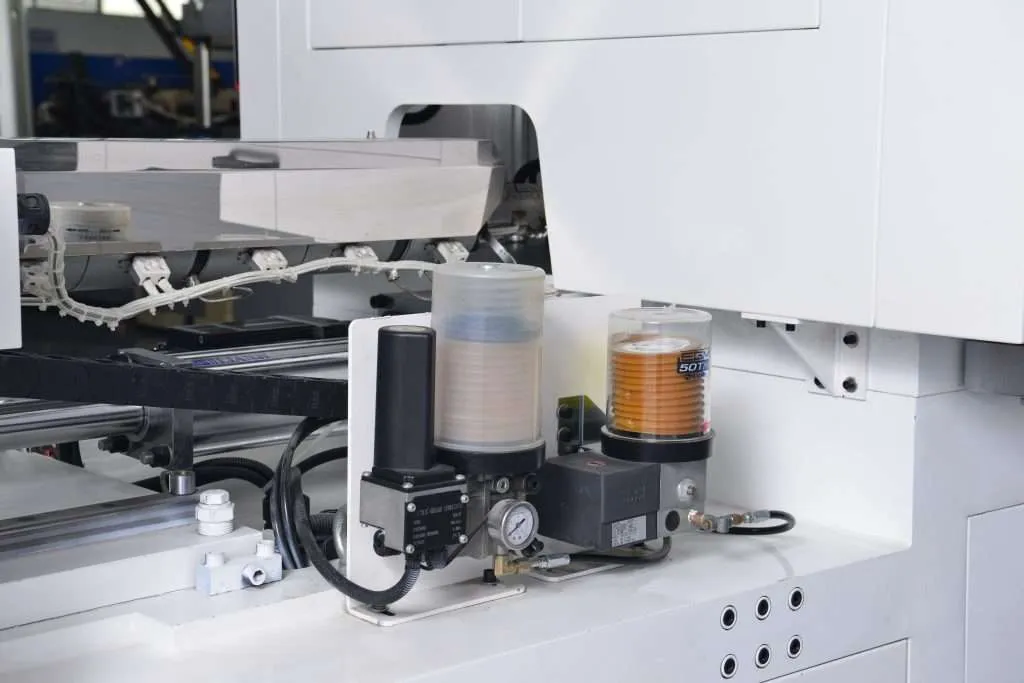

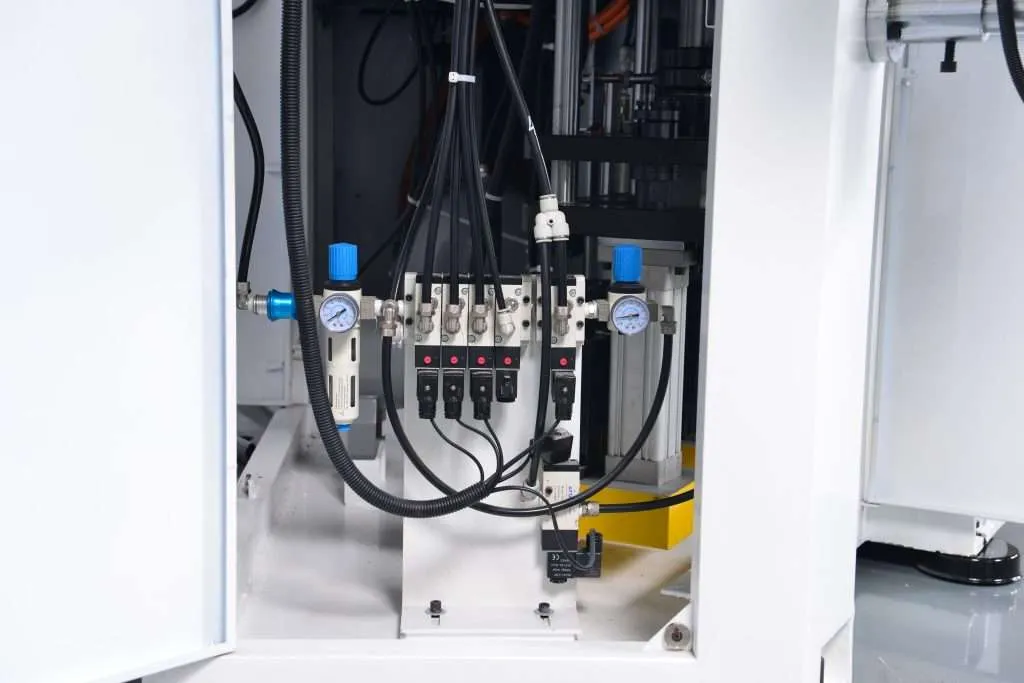

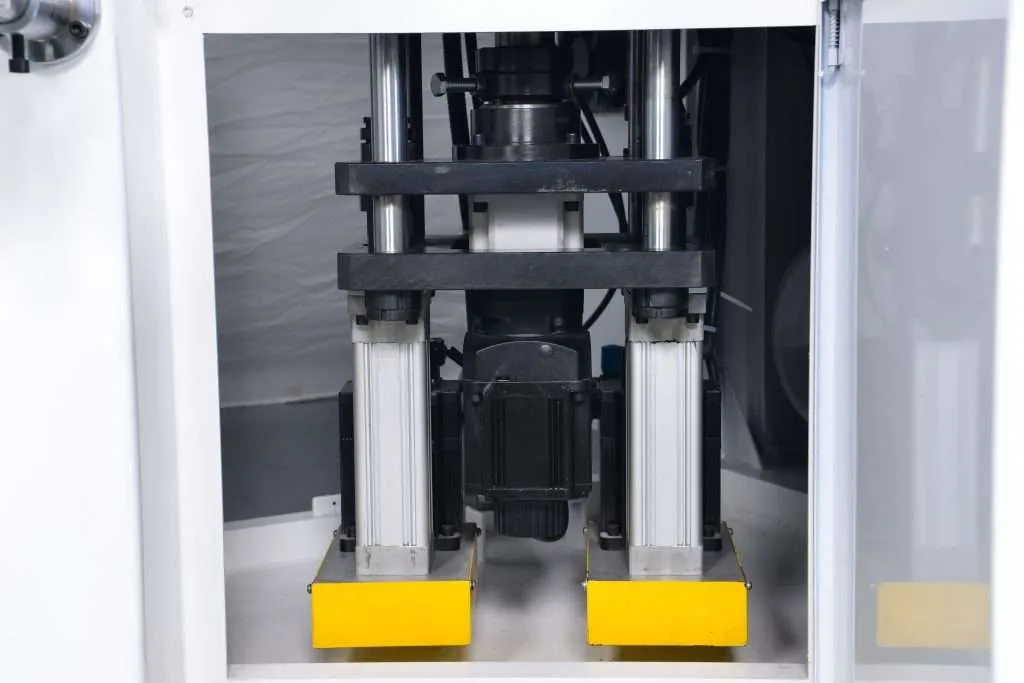

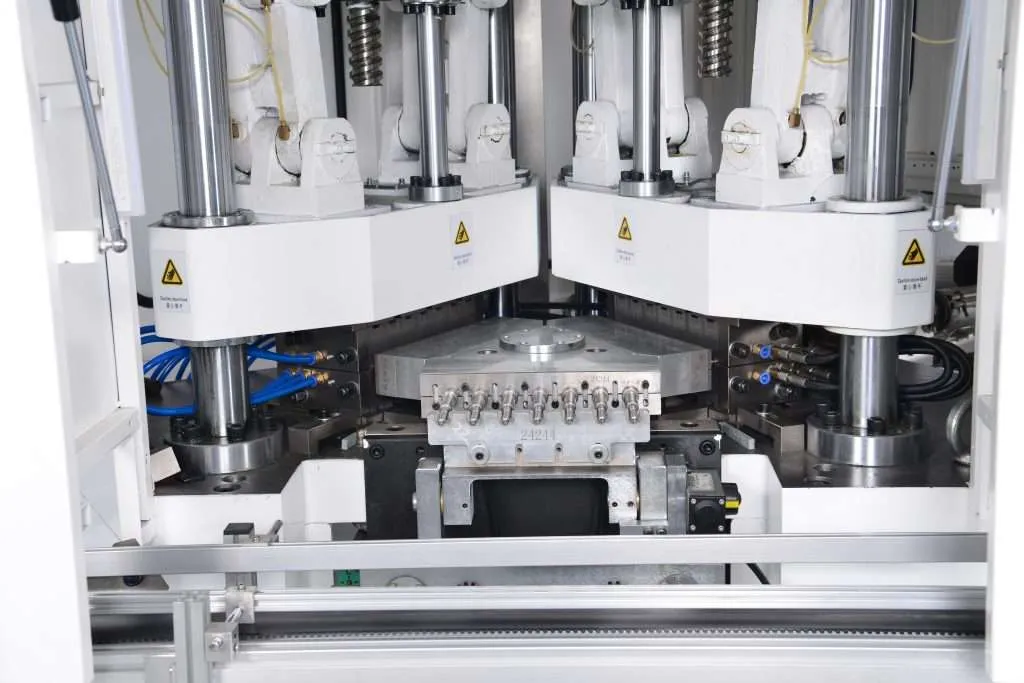

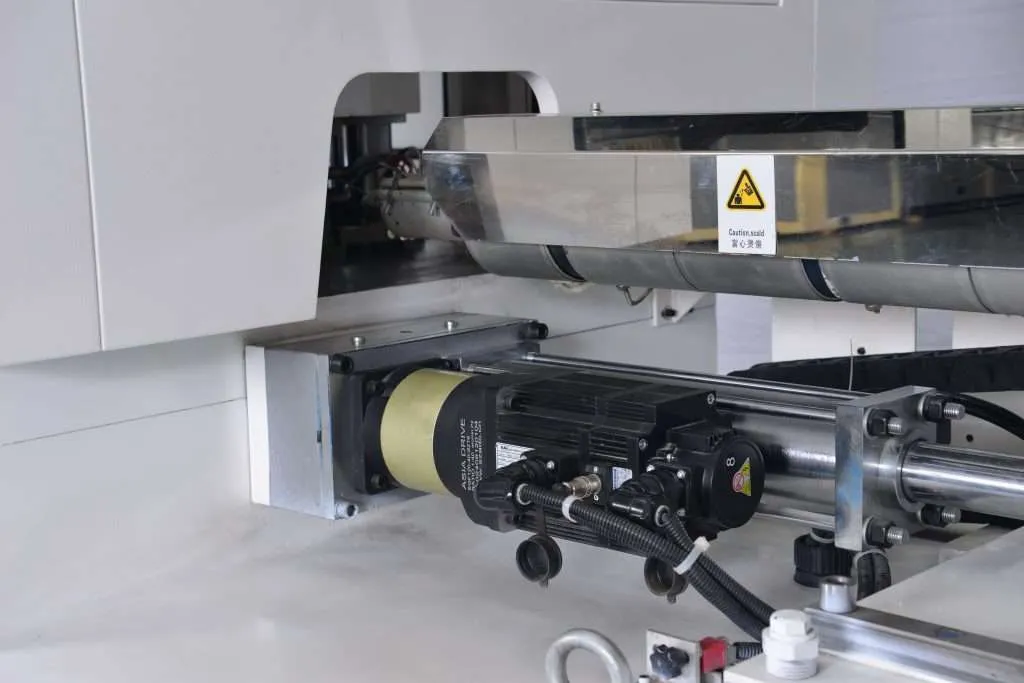

A closer look at IBM 30E
