IBM 80E Full-Electric Injection Blow Molding Machine
A full-electric IBM-E platform with a 680 cm³ injection volume and product range up to 1 L.
IBM 80E
A full-electric IBM-E platform with a 680 cm³ injection volume and product range up to 1 L.
- Full-electric servo architecture
- ETHERCAT-based control system
- High-speed, quiet operation
- Servo-driven critical motions
- Precision ball-screw mold drive
IBM 80E technical overview
Reference specifications are shown below. Final specifications depend on the quoted configuration, resin, mold and bottle project.
- Product range
- 5 mL–1 L
- Injection volume
- 680 cm³
- Injection weight
- 510 g HDPE
- Clamping force (injection / blowing)
- 1,000 / 150 kN
- Maximum product size
- H240 × Ø120 mm
- Machine dimensions (L × W × H)
- 5.95 × 2.45 × 2.3 m
- Machine weight
- 9.5 t
Process and platform notes
- An ETHERCAT-based electrical operating system with Techmation controller provides fast response and precise control. Actual energy use depends on the selected machine, configuration, resin, mold and operating conditions.
- Critical motions including rotation, ejection and flipping use servo motors for stable, quiet, high-speed performance.
- A double-beam, four-tie-bar toggle clamping structure distributes clamping force reliably.
- Mold opening and closing use a high-precision Japanese servo ball-screw drive for rapid, low-impact movement.
- CNC back-pressure regulation and a high-resolution motion-control encoder support consistent plastication.
IBM 80E full specifications
Manufacturer specifications, updated .
| Parameter | Specification |
|---|---|
| Screw diameter | 60 mm |
| Screw L/D ratio | 21 |
| Maximum injection volume | 680 cm³ |
| Injection weight (HDPE) | 510 g |
| Maximum injection pressure | 1000 bar |
| Maximum screw stroke | 240 mm |
| Screw speed | 250 rpm |
| Barrel heating power | 19 kW |
| Heating zones | 5 |
| Injection clamping force | 1000 kN |
| Blow clamping force | 150 kN |
| Mold opening stroke | 140 mm |
| Rotary table lifting height | 70 mm |
| Maximum platen size (L × W) | 850 × 390 mm |
| Standard mold thickness (±0.05 mm) | 280 mm |
| Mold heating power | 4 kW |
| Ejection stroke | 340 mm |
| Clamping shaft servo motor power | 9 kW |
| Charging shaft servo motor power | 37 kW |
| Injection shaft servo motor power | 30 kW |
| Rotation servo motor power | 2 kW |
| Product volume | 0.005–1 L |
| Maximum product height | ≤ 240 mm |
| Maximum product diameter | ≤ 120 mm |
| Dry cycle time | 3.2 s Unloaded machine cycle; this is not the bottle-production cycle or guaranteed output. |
| Minimum compressed-air supply pressure | 1.2 MPa |
| Compressed-air consumption | ≥ 0.8 m³/min |
| Machine dimensions (L × W × H) | 5.95 × 2.45 × 2.3 m |
| Machine net weight | 9.5 t |
| Total rated power (electric pre-plasticization configuration) | 135 kW The manufacturer specifies the electric pre-plasticization configuration; confirm the quoted machine configuration. |

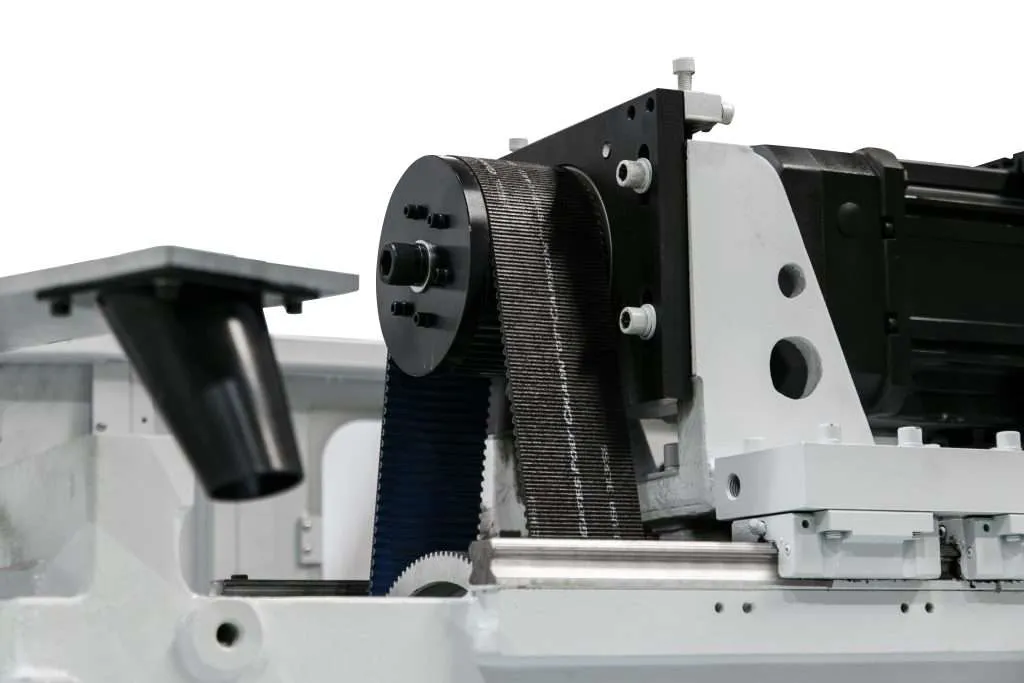

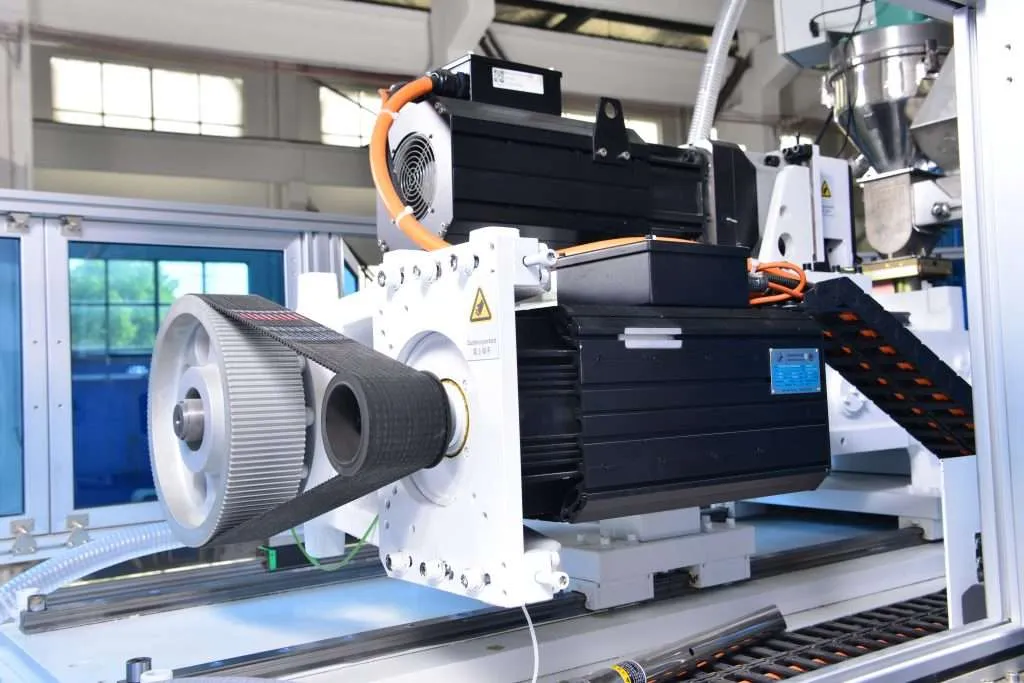

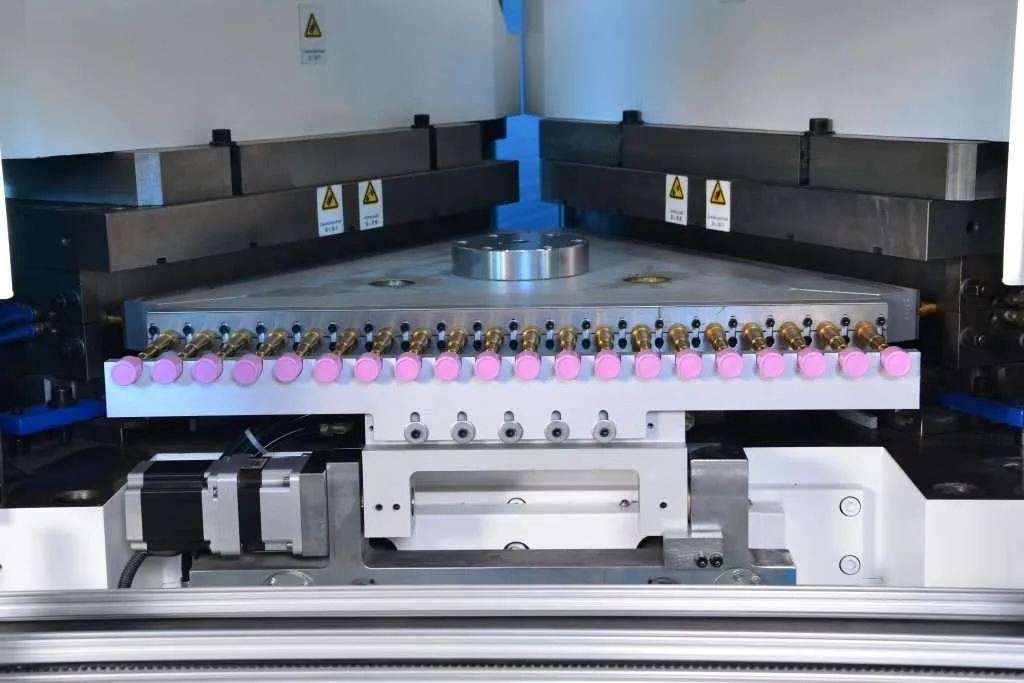

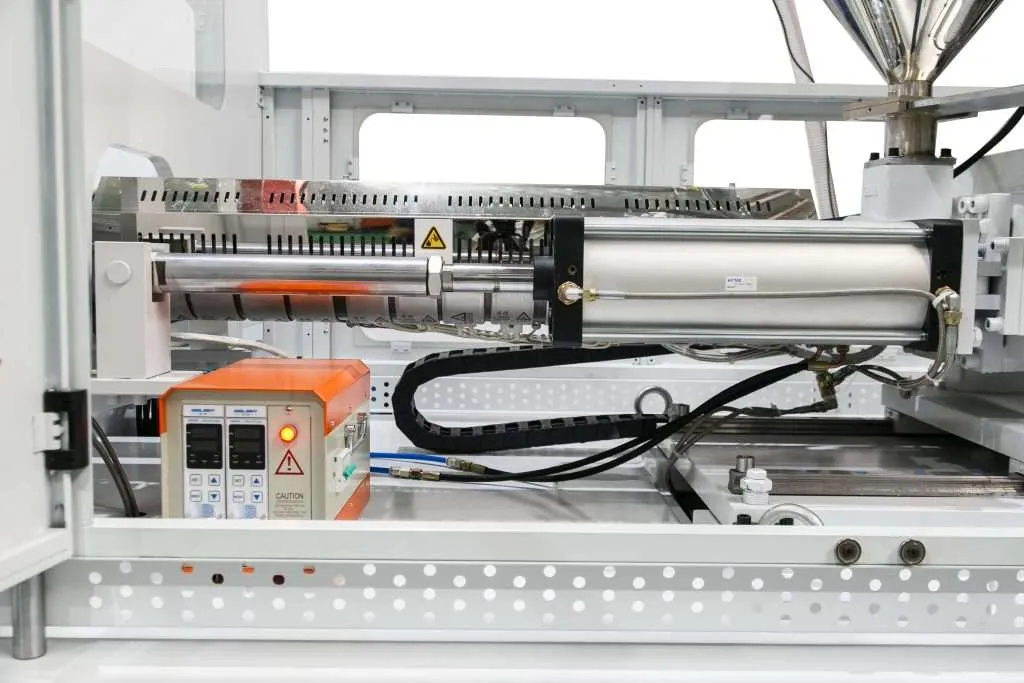

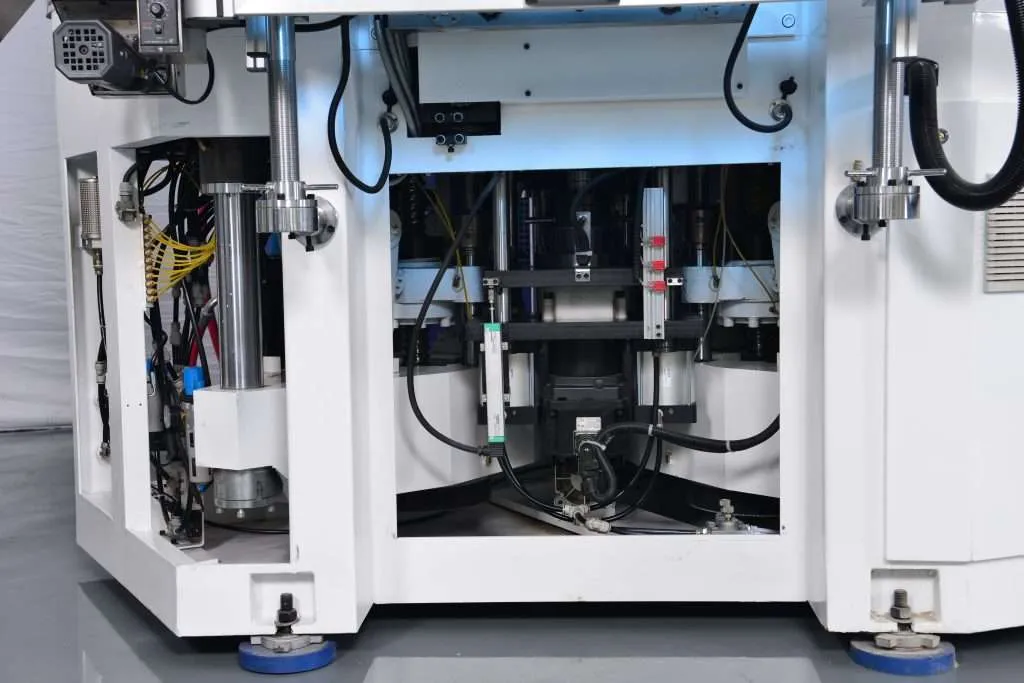

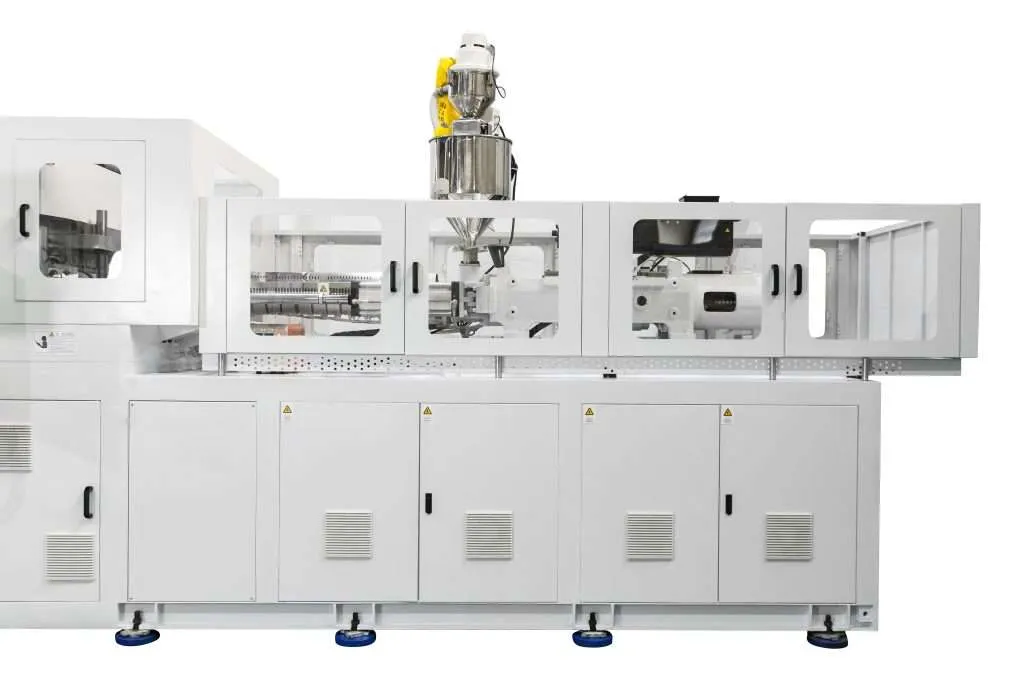

A closer look at IBM 80E
